Multifunction magnetic filter

Filter for condensing boilers

1. Acid condensation neutralising filter for condensing boilers 2. Body construction in transparent PA polyamide 3. Hose connection caps / fittings in PA polyamide 4. Wall fixing bracket Polymer 5. Neutralising medium holding net. AISI 304 stainless steel 6. Neutralising medium carbonate CaCo3. Available as a spare part 7. EPDM PEROX as a hydraulic seal 8. Connection on boiler with hose...

Flanged type balancing valve – fixed orifice PN16

GENERAL CHARACTERISTICS Range: from DN65 to DN600. -Design according to BS7350:1990 standard. -Model incorporating a callibrated orifice plate on the inlet flange allowing fixed flow measurement, regulation and cut off function -Oblique seat ensuring excellent adjustment precision. -Flow measurement accuracy of +/-5% at any open valve position in accordance with BS7350. -Opening indicator with...

Expansion tank 80l 1"

APPLICATION: The 80l horizontal diaphragm tank for cold water is designed to be assembled with a pump with accessories. As a result of such assembly and after adding an anti-vibration hose with an elbow, we get a compact and relatively small hydrophore set. When selecting the size of the tank, it should be taken into account that the amount of water available between turning the pump off and...

BSE threaded bronze balancing valve PN20

The proposed valves have an oblique seat which offers a good adjustment precision and a resistance lower than the valves with a straight seat: head losses are small, flow more important for a same DN leads. Mounting on pipes is preferred direction indicated by an arrow on the body. The balancing valve can be used as a « stop valve. A thrust allows memorizing the valve adjustment, without...

Static balancing valve

1. The balancing valve is a single component device having adjustment functions and that measures cold and hot fluids transiting inside closed and open systems with following advantages: - Micrometric adjusting of the transfer flow. - Indicator of calibration reading of numerical value on the valve's hand wheel. - Possibility of checking circuit via indirect measuring of flow rate using...

Thermostatic head TL10

1. Temperature setting: This controller has wide range of set temperature, you can select any temperature you need. The graduations on the housing of the controller indicate different temperature set points, following is the corresponding figure of the room temperature and graduation for reference: Room Temp. (ºC): 6 12 16 20 24 28 Graduation: * 1 2 3 4 5 After finish the setting, the...

Self cleaning filter with magnetic separator for...

1. Removes impurities, maintaining optimal system efficiency 2. Main body and flanges steel painted 3. Cover Stainless steel 4. Ball valve body and air vent valve in brass 5. EPDM PEROX as a hydraulic seal 6. Stainless steel filter 100 microns 7. 4 Magnetic elements Neodymium 12.000 Gauss. 8. Flanged PN16 connections 9. Pair of pressure gauges scale 0-10 bar 10. Dosing point connection 3/8” 11....

Polymer manifold

1. The Polymer manifold for floor systems enables parallel feed of terminal fluidic terminals. 2. Limited dimensions that enable the insertion in boxes to be walled in partitioning walls 3. Manual or automatic on-off interception of the single circuits. 4. Adjustment of the flow in transit for balancing between the various circuits by means of flowmeters mounted on the manifold and equipped...

Stainless steel manifold

Body of Stainless Steel AISI 304L Connection parts of brass CW617N EPDM seals and silent blocks Polymer Hand wheels and caps Derivation connection: G 3/4” (ISO 228) EUROKONUS Connections on line: Female 1" (ISO 228) Max. working pressure: 6 bar Max circuit test pressure: 10 bar (at 20°C) Differential pressure Δp max.: 1 bar Maximum working temperature: 70°C Fluid allowed: Water or Water +...

Vertical thermostatic mixing valve with thermometer

1. Anti-scalding device with stop water supply according EN 1111 standard. 2. Extractable cartridge and thermostatic special unit with lime protection and high-speed response. 3. Connectors with stainless steel filters. 4. Non return valve incorporated. 5. With immersion thermometer. 6. Possibility to block the handle position after temperature adjustment. 7. Maximum water inlet temperature...

Complet with two valves ECO inspectables

Divert thermostatic valve

1. Divert hot water coming from the panel towards the boiler and the consumption. The ratio will be in function of inlet temperature. 2. Setting temperature 40ºC. 3. Thermostatic unit with lime protection and highspeed response. 4. Maximum water inlet temperature 110ºC. 5. Maximum working pressure 10 bar. 6. Flow rate 45 l/min. at pressure 3 bar.

3 way motorized-zone valve with 5 cores wire

1. The zone valve is intended for use in control terminal units such as fan-coil and boxes in heating, ventilation, and air conditioning systems. 2. The valves can be used with hot and cold water in the temperature range from 0 ºC (nonfreezing) to 94 ºC. 3. The valve is driven by hysteresis synchronous motor with spring return. 4. There are two types of motorized valves: normally closed 2-way...

Expansion tank with manometer 80l 1"

APPLICATION: Horizontal diaphragm tank 80l. with a pressure gauge for cold water is designed to be assembled with a pump with medium-capacity accessories. As a result of such completion and after adding an anti-vibration hose with an elbow, we get a compact and relatively small hydrophore set. Additional equipment of the tank with a manometer mounted in its part where there is an air cushion...

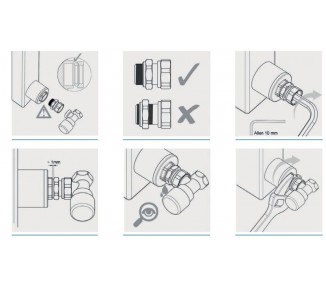

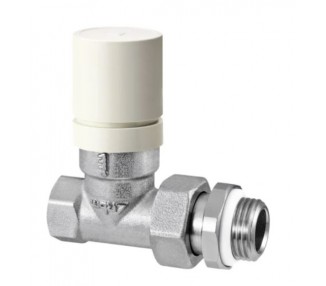

Straight valve with thermostatic option for iron pipe

Dynamic balancing valve

1. The balancing valve is a single component device having adjustment functions and that measures cold and hot fluids transiting inside closed and open systems with following advantages: - Maintaining a constant flow rate at the device value, within a differential pressure range between upstream and downstream - The flow rate value is set through a cartridge adjustable to ensure the design flow...
