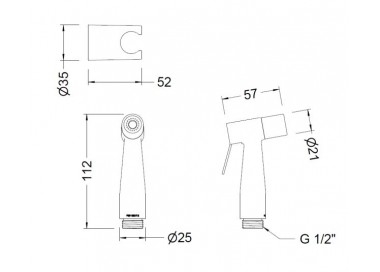

Shower spray kit made in stainless Steel AISI 304 high-quality mate black finish, supplied with double lock flexible hose 1.2m. Includes all fixing elements.
The design its robust and compac, that fuses elegance and technology with the highest quality standards.
1) Body made in brass according to UNE-EN 1982.
2) Handle made in Zamak.
3) Chrome plated according to EN 248.
4) Guided outlet noiseless Ø25 ceramic cartridge.
5) Maximum temperature: 85 °C.
6) Max. recommended temp.: 65 °C.
7) Maximum pressure: 10 bar.
8) Minimum pressure: 0,5 bar.
9) Recommended pressure: 1 - 3 bar.
1) Body made in brass according to UNE-EN 1982.
2) Cartridge made in brass according to UNE-EN 12165 with POM cap.
3) Chrome plated according to EN 248
4) Timed cartridge regulated to 7-10 s (at 3 bar).
5) Anti-lime M24x1 plastic aerator.
6) Fitted with 35 cm long flexible connectors M10X1 F ⅜”, check valves and stainless-steel horseshoe fixation set.
7) Maximum temperature: 85 °C.
8) Max....
COMPONENTS AND MATERIALS
- Concealed wall plate – AISI 304 stainless steel. Secured to wall with two screws.
- Main body –AISI 304 stainless steel, matt black powder coat (RAL 9004). Secured to wall plate with one Allen stainless steel screw. The product incorporates the open ring for towels and the rear round anchor cover for installation.
- Fixings set - Two Ø 6mm wall plugs, two Ø 4mm screws...
1) Body made in brass according to UNE-EN 1982.
2) Handle made in Zamak.
3) Chrome plated according to EN 248.
4) Guided outlet noiseless Ø40 ceramic cartridge.
5) Diverter operated by pressure-position.
6) Anti-lime M28x1 plastic aerator with chrome plated brass cover.
7) Fitted with stainless steel flexible hose (170 cm long), hand-shower, shower holder and fixing brass made eccentrics nuts....
1) Made in brass according to EN 12165
2) Chrome plated according to EN 248.
3) Universal valve with / out overflow.
4) Standard connection G 1 ¼”.
5) Removable cap.
1) Brass body, handle and base, UNE-EN 1982 standard.
2) Handle made of Zamak.
3) Chrome-plated according to the EN 248 standard.
4) Built-in noiseless ceramic cartridge Ø40.
5) Diverter, pressure-opening diverter (min 0.5 bar)
6) Minimum flow: 12 l/min (3 bar)
7) Maximum temperature of use: 85 °C.
8) Maximum recommended temperature: 65 °C.
9) Maximum operating pressure: 10 bar.
10)...
COMPONENTS AND MATERIALS
- Concealed wall plates (2 units) – AISI 304 stainless steel. Secured to wall with two screws.
- Main body –AISI 304 stainless steel, 2,5mm thickness. Matt black powder coat (RAL 9004), 115 µm thickness. Secured to wall plates with two stainless steel screws.
- Translucent round glass made of glass
- Fixings set - Two Ø 6mm wall plugs, two Ø 4mm screws and one Allen...
1) Body made in brass according to UNE-EN 1982.
2) Lever made in Zamak.
3) Black mate finish.
4) Conventional D40 ceramic cartridge.
5) Diverter operated by pressure-position.
6) Anti-lime M28x1 plastic aerator with chrome plated brass cover.
7) Fitted with stainless steel flexible hose (170 cm), hand-shower and shower holder.
8) Maximum temperature: 85 °C.
9) Max. recommended temp.: 65 °C.
10)...
Shower spray kit made in stainless Steel AISI 304 high-quality mate black finish, supplied with double lock flexible hose 1.2m. Includes all fixing elements.
The design its robust and compac, that fuses elegance and technology with the highest quality standards.
