1. Self-cleaning filter with removable filtering cartridge, pressure gauge (0 to 16 bar) and discharge bibcock with hose connection
2. Brass body construction UNE-EN 12165
3. Polycarbonate filter bowl
4. Stainless steel AISI 316L filtering cartridge
5. Filtering cartridge light of 45 microns
6. Silicone and NBR seals
7. Body with two possibilities of threaded ends, M - M 1" and F – F 3/4” according to ISO 228/1
8. Fitting with two possibilities of threaded ends, F - F 1" or M – M 3/4" according to ISO 228/1, both with NBR gaskets (see sketch)
9. Pressure gauge 0-16 bar R1/4” connection
10. Brass ball valve with hoe connection
11. Maximum working pressure 16 bar
12. Working temperature from -10ºC to 80ºC
13. For use with water
14. Special tool for disassembling the sieve
Trusted client
Trusted delivery
16 other products in the same category:
Fluids subjected to high temperatures and pressures such as: steam, thermal oil, hot water, chemicals etc. GENERAL CHARACTERISTICS - Range : from DN 25 to DN300 (MVT 30mm : -20/+10 mm axial) from DN 50 to DN 300 (MVT 60mm : -40/+20 mm axial) Expansion joint with rotating flanges PN25. Flexible metal bellow. STANDARDS Butt welding connection BW (Butt Welding) WORKING CONDITIONS Maximum...
1. Stainless steel full port ball valve, 2 piece. 2. Thread ends according to ISO 7-1 (EN 10226-1) M – F. 3. Made of stainless steel 1.4408 (CF8M). 4. Ball seats PTFE + 15 % G.F. 5. Blow-out proof stem. 6. O’ring in the stem FKM (Viton). 7. Stem gasket PTFE. 8. Locking system. 9. Max. Working pressure 63 bar. 10.Working Temperature –25 ºC + 180 ºC.

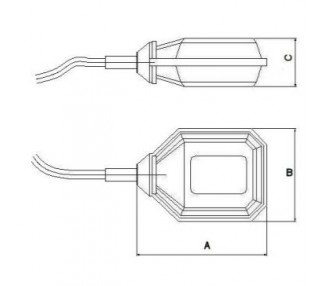

1. Power supply 110V-220V / 50-60Hz 2. Maximum power 1,5 KW 3. Maximum operational temperature 50ºC 4. Protection grade IP68 5. Max. immersion with that protection 10m 6. Inductive load 4A 7. Max. allowable voltage 250VAC 8. Float case in polypropylene material. 9. Micro switch operation angle: 45° ±10 10. Cable in neoprene H07RNF 3 x1 - PL3881 040 with cable length 40 cm - PL3881 300 with...
