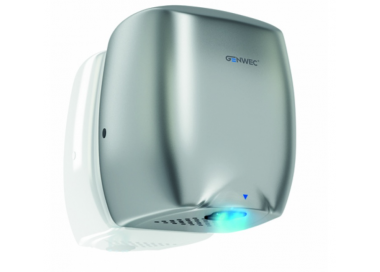

The hot air hand dryer consists of a one-piece casing in 2,5 mm silver aluminium. The base-casing assembly which makes up the hand dryer is fixed to the wall by means of 4 holes with the dimensions for an 8 mm drill bit. The dryer is operated by an electronic infra-red sensor and it automatically stops after the hands have been withdrawn from the sensor field. The universal brushless motor, located in the centre of the volute, produces 23.000 r/min The dryer delivers an airflow of 2.333 l/min (140 m3/h) at a speed of 230 km/h. The air flows as long as the user continues to use it. The dryer has a total power rating of 900W at 230V with a maximum consumption of 3,9A. The noise level at 2 metres is 72 dB. The protection class against splashing is IP22. The total measurements of the hot air hand dryer are 287 x 205 x 180 mm, and its total net weight is 4,5kg.
16 other products in the same category:
Intelligent, flexible controls allow you to adjust airflow, sound quality and heating options to suit any application. Product features and benefits • 10 second drying time, ideal for high traffic areas • Intelligent heating on/off and 3-level motor control optimize energy, efficiency and user comfort • 2-3 times longer service life than competing quick dryers • two nozzle options:...
COMPONENTS AND MATERIALS - Main body and base – Made of high impact ABS plastic. - Protection grid – Made of polycarbonate. - Fixing kit: Two 6mm wall plugs, two 4mm screws. OPERATION The base of the dryer has a general switch on the side with a pilot light next to it that indicates if it is on. On the back of the gun handle it has a switch with three positions, “I” – low speed/low heating...
COMPOSITION - Self-closing wall mounted push button tap for shower - Shower head - Wall pipe fixing kit - Chromed brass connecting pipe - Kit tube and shower OPERATING CHARACTERISTICS Flow rate: 8 l/min (w/flow regulator) Operating pressure: Min 1 – max 6 bar Recommended pressure: 2 – 4 bar Water inlet temperature: 5 – 65 °C Flow time: 15 sec. @ 3 bar (tolerance as stated in EN 816: 15 ±...
COMPOSITION - Panel in aluminum, plastic ABS. - Flow rate limiter 8 l/min - Kit di fissaggio da parete - Wall fixing set - Connection for wall supply in brass. OPERATING CHARACTERISTICS Operating pressure: Min 1.5 – max 5 bar Recommended pressure: 2 – 4 [bar] Water temperature: 5 – 65 °C Flow rate: 8 l/min (w/flow limiter) Flow time: 25 sec. @ 3 bar (tollerace: +5/-10 sec.).
The hot air hand dryer consists of a one-piece casing in steel and white epoxy finishing, with a polycarbonate grille on the bottom end and a base, made in ABS plastic, that serves as support for the volute-nozzle made in flame-retardant thermoplastic. The base-casing assembly which makes up the hand dryer is fixed to the wall by means of 4 holes with the dimensions for an 8 mm drill bit. The...
