1) Body made in brass according to UNE-EN 1982.
2) Chrome plated according to EN 248.
3) Guided outlet noiseless D40 ceramic cartridge.
4) Anti-lime M24x1 plastic aerator with chrome plated brass cover.
5) Fitted with fixing brass eccentrics nuts.
6) Maximum temperature: 85 °C.
7) Max. recommended temp.: 65 °C.
8) Maximum pressure: 10 bar.
9) Minimum pressure: 0,5 bar.
10) Recommended...
Features:
1) Body and spout made of brass in accordance with the UNE-EN 1982 standard
2) Handle made from Zamak - a
3) Chrome-plated according to EN 248 standard
4) Cartridge (insert) made of ceramic Ø35
5) Plastic aerator with anti-limescale system F22x1 with brass cover + chrome
6) Equipped with 40 cm tubes. (connectors) M10x1 F ⅜ ”and stainless steel horseshoe connectors, fixing set...
1) Made in brass according to UNE-EN 1982.
2) Handles in ABS.
3) Chrome plated according to EN 248.
4) Plastic thermostatic cartridge.
5) Ceramic diverter.
6) Sliding and adjustable rotary holder.
7) Telescopic column with adjustable height.

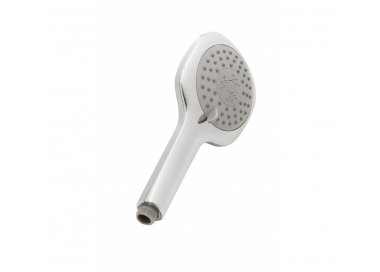

8) Fitted with 1.5 m. chrome plated stainless steel flexible hose, adjustable sprayer with anti-lime jets and 5 anti-lime functions hand shower.
9) Maximum...
1) Body and plate made in brass according to UNE-EN 1982.
2) Lever made in Zamak.
3) Black mate finish.
4) Guided outlet noiseless D35 ceramic cartridge.
5) Anti-lime female M18x1 plastic aerator with black mate brass cover.
6) Spout of 22 cm.
7) G ½” connectors.
8) Maximum temperature: 85 °C.
9) Max. recommended temp.: 65 °C.
10) Maximum pressure: 10 bar.
11) Minimum pressure: 0,5 bar.
12)...
1) Body and plate made in brass according to UNE-EN 1982.
2) Lever made in Zamak.
3) Chrome plated according to EN 248.
4) Conventional D40 ceramic cartridge.
5) Three positions ceramic diverter.
6) G ½” connectors.
7) Maximum temperature: 85 °C.
8) Max. recommended temp.: 65 °C.
9) Maximum pressure: 10 bar.
10) Minimum pressure: 0,5 bar.
11) Recommended pressure: 1 - 3 bar
1) Body made in brass according to UNE-EN 1982.
2) Handles made in Zamak.
3) Chrome plated according to EN 248.
4) Noiseless thermostatic cartridge.
5) Anti-scalding security system according to EN1111.
6) Ceramic diverter.
7) Maximum temperature: 85 °C.
8) Max. recommended temp.: 65 °C.
9) Maximum pressure: 10 bar.
10) Minimum pressure: 0,5 bar.
11) Recommended pressure: 1 - 3 bar.
COMPONENTS AND MATERIALS
- Concealed wall plate – AISI 304 stainless steel. Secured to wall with two screws.
- Main body –AISI 304 stainless steel, 2,5mm thickness. Matt black powder coat (RAL 9004), 115 µm thickness. Secured to wall plate with one Allen stainless steel screw.
- Translucent round soap dish.
- Fixings set - Two Ø 6mm wall plugs, two Ø 4mm screws and one Allen key.
OPERATION...
1) Body and plate made in brass according to UNE-EN 1982.
2) Lever made in Zamak.
3) Black mate finish.
4) Conventional D35 ceramic cartridge.
5) Diverter operated by pressure (min. 0,5 bar).
6) Maximum temperature: 85 °C.
7) Max. recommended temp.: 65 °C.
8) Maximum pressure: 10 bar.
9) Minimum pressure: 0,5 bar.
10) Recommended pressure: 1 - 3 bar
1) Brass body, handle and base, UNE-EN 1982 standard.
2) Chrome-plated according to the EN 248 standard.
3) Built-in noiseless ceramic cartridge Ø40.
4) Aerator M24x1, chromed.
5) Equipped with chain holder, 40cm long M10x1 F ⅜” flexible connectors and stainless steel horseshoe mounting kit
6) Maximum temperature of use: 85 °C.
7) Maximum recommended temperature: 65 °C.
8) Maximum...
1) Body and plate made in brass according to UNE-EN 1982.
2) Handle made in Zamak.
3) Chrome plated according to EN 248.
4) Guided outlet noiseless Ø40 ceramic cartridge.
5) Ceramic diverter three positions.
6) Maximum use temperature: 85 °C.
7) Max. recommended temp.: 65 °C.
8) Maximum use pressure: 10 bar.
9) Minimum use pressure: 0,5 bar.
10) Recommended pressure: 1 - 5 bar
