PN 16. Body chrome plated brass UNE-EN 12165. Gas threaded ends (BSP) F-F - ISO 228/1. Sieve: stainless steel AISI 304. Light: 50 microns. NBR o-ring. Max. temp. 110ºC.
Trusted client
Trusted delivery

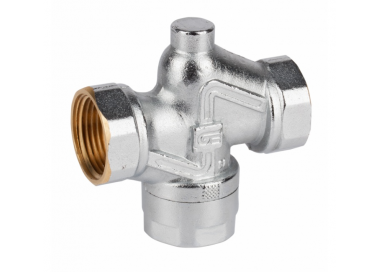

1. In line strainer for gas.
2. Chrome-plated brass construction according to UNE-EN 12165.
3. Thread ends gas (BSP) female according to ISO 228/1.
4. Sieve: Stainless steel AISI 304.
5. Sieve light: 50 microns.
6. Maximum working pressure 16 bar (PN 16).
7. Working temperature from 0ºC to 110ºC.
8. NBR o-ring.
