The submersible pump with a grinder is dedicated to pumping sewage, slurry and dirty water with the presence of organic and household contaminants. The pump has an efficient grinding system which initially cuts the pumped medium into pieces, thanks to which there is no clogging of the discharge section in the pipeline. The pump has a float control which controls switching on depending on the level of the pumped medium and protects the pump against dry running. The pump is equipped with an overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick.
Technical data:
Maximum water temperature 35 ° C
Protection degree IP 68
Maximum immersion depth [meters] 10
Working position vertical
Material execution:
Stainless steel pump housing
Cast iron rotors
Stainless steel shredding system
Stainless steel pump shaft
PLPC8-4-0,37
Data sheet
Flow
160 l/min
Voltage
230 V
Engine power
0,37 kW
Lift height
8 m
No customer reviews for the moment.
error
Your review appreciation cannot be sent
feedback
Report comment
Are you sure that you want to report this comment?
check_circle
Report sent
Your report has been submitted and will be considered by a moderator.
error
Your report cannot be sent
Write your review
check_circle
Review sent
Your comment has been submitted and will be available once approved by a moderator.
APPLICATION:
The WQ 450F pump is a compact submersible pump designed for pumping dirty, rainy and gray water containing organic pollutants with a maximum diameter not exceeding 25mm. The WQ 450F has a float control that controls its activation depending on the level of the pumped medium and protects the pump against dry running. The pump is additionally equipped with an overcurrent protection...
Maximum capacity: 100 l/min
Maximum lifting height: 6 m
Motor power: 0.26 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 5 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Plastic pump housing
PPO technopolymer impeller
Plastic inlet screen...
Maximum capacity: 150 l/min
Maximum lifting height: 7 m
Motor power: 0.55 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 35 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Stainless steel pump housing
PPO technopolymer impeller
Stainless steel inlet screen...
Maximum capacity: 670 l/min
Maximum lifting height: 15 m
Motor power: 1.5 kW
Voltage: 230V
discharge port: 3"
Power cable length: 8 m
Size of impurities max.: 8.5 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 25
Working position vertical
material version:
Stainless steel pump housing
Impeller high chrome steel
Stainless steel...
Submersible pumps are aggregates made entirely of stainless steel, installed in wells with a minimum diameter of 110mm. They are designed for pumping clean, cold water that does not contain solid grinding or long-fiber elements.
Technical data:
Maximum water temperature 35 ° C
Protection degree IP 68
Winding insulation class B
Number of starts up to [x / hour] 20
Minimum cooling flow of the...
Maximum capacity: 230 l/min
Maximum lifting height: 8 m
Motor power: 0.75 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 25 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Technopolymer pump housing
PPO technopolymer impeller
Plastic inlet screen
Plastic pump cover
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Winding insulation class B
Number of starts maximum [x/hour] 20
Minimum motor cooling flow [m/s] 0.08
Maximum immersion depth [meters] 50
Working position vertical
Built-in engine starting method
capacitor
material version:
Stainless steel pump housing
Cable sheath stainless steel
Pump shaft stainless steel
Noryl...
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Aluminum alloy pump housing
Cast iron impeller
Stainless steel inlet screen
Rotor chamber housing spheroidal graphite cast iron
Maximum capacity: 233 l/min
Maximum lifting height: 14 m
Motor power: 0.55 kW
Voltage: 230V
Discharge port: 50mm
Power cable length: 9.5 m
Size of impurities max.: 9 mm
Technical data:
Maximum water temperature 40°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Aluminum alloy pump housing
Chrome steel alloy impeller
Steel base
Pump...

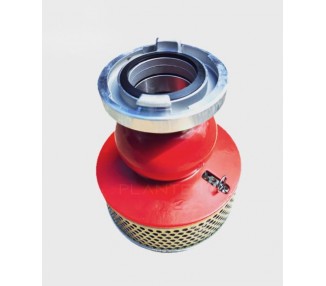

Suction baskets are the beginning of the suction pipe and allow water to be sucked in by the water pump. The end of the pipe must be connected to a non-return valve, which allows the basket to be emptied after use.
The suction basket is most often used to pump clean and dirty water from open reservoirs such as lakes, deep ponds or rivers.
Due to its design, it prevents contaminants from...
Maximum capacity: 205 l/min
Maximum lifting height: 8 m
Motor power: 0.75 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 35 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Stainless steel pump housing
PPO technopolymer impeller
Stainless steel inlet screen...
Submersible pumps are aggregates made entirely of stainless steel, installed in wells with a minimum diameter of 110mm. They are designed for pumping clean, cold water that does not contain solid grinding or long-fiber elements.
Technical data:
Maximum water temperature 35 ° C
Protection degree IP 68
Winding insulation class B
Number of starts up to [x / hour] 20
Minimum cooling flow of the...
Maximum capacity: 100 l/min
Maximum lifting height: 6.5 m
Motor power: 0.25 kW
Voltage: 230V
discharge port: 1"
Power cable length: 6 m
Size of impurities max.: 5 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Plastic pump housing
PPO technopolymer impeller
Plastic inlet screen
Plastic pump cover
The submersible pump with a grinder is dedicated to pumping sewage, slurry and dirty water with the presence of organic and household contaminants. The pump has an efficient grinding system which initially cuts the pumped medium into pieces, thanks to which there is no clogging of the discharge section in the pipeline. The pump has a float control which controls switching on depending on the...
Technical data:
Size of filtered impurities > 120
Maximum working pressure 10 Bar
Connection size 1"
Maximum flow 120 l/min
Material version:
Plastic housing
Stainless steel mesh
Plastic discs
