The submersible pump with a grinder is a pump dedicated to sewage, slurry, water with the presence of organic impurities and household impurities. The pump has a grinding system that pre-cuts the pumped medium into pieces, thanks to which there is no clogging of the delivery section in the pipeline. The pump has a float control that controls switching on depending on the level of the pumped medium and protects the pump against dry running. It is equipped with overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick. It can be successfully used as a pump for emptying sewage tanks in farms and households.
Maximum capacity: 830 l/min
Maximum lifting height: 21 m
Motor power: 2.2 kW
Voltage: 400V
Discharge port: 3"/75mm
Power cable length: 8 m
Size of impurities max.: 8.5 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 25
Working position vertical
material version:
Stainless steel pump housing
Chrome cast steel impeller
Stainless...
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Winding insulation class B
Number of starts maximum [x/hour] 20
Minimum motor cooling flow [m/s] 0.08
Maximum immersion depth [meters] 50
Working position vertical
Built-in engine starting method
capacitor
material version:
Stainless steel pump housing
Cable sheath stainless steel
Pump shaft stainless steel
Noryl...
Suction baskets are the beginning of the suction pipe and allow water to be sucked in by the water pump. The end of the pipe must be connected to a non-return valve, which allows the basket to be emptied after use.
The suction basket is most often used to pump clean and dirty water from open reservoirs such as lakes, deep ponds or rivers.
Due to its design, it prevents contaminants from...
Maximum capacity: 660 l/min
Maximum lifting height: 54 m
Motor power: 7.5 kW
Voltage: 400V
Discharge port: 65mm
Power cable length: 9 m
Size of impurities max.: 15 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Cast iron pump housing
Cast iron impeller
Stainless steel inlet screen...

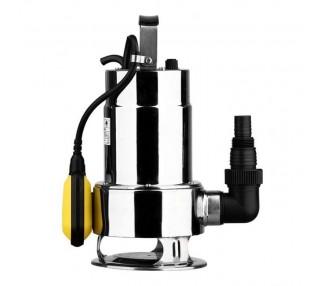

Maximum capacity: 150 l/min
Maximum lifting height: 7 m
Motor power: 0.55 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 35 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Stainless steel pump housing
PPO technopolymer impeller
Stainless steel inlet screen...
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Aluminum pump housing
Aluminum impeller
Stainless steel inlet screen
Rotor chamber housing spheroidal graphite cast iron
Maximum capacity: 290 l/min
Maximum lifting height: 18 m
Motor power: 0.75 kW
Voltage: 230V
Discharge port: 3"/75mm
Power cable length: 8 m
Size of impurities max.: 8 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 8
Working position vertical
material version:
Stainless steel pump housing
Impeller impact resistant techno polymer...
Maximum capacity: 750 l/min
Maximum lifting height: 15.5 m
Motor power: 1.5 kW
Voltage: 230V
discharge port: 2"
Power cable length: 9.5 m
Size of impurities max.: 8 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 5
Working position vertical
material version:
Stainless steel pump housing
Impeller made of impact-resistant plastic...
Maximum capacity: 315 l/min
Maximum lifting height: 13 m
Motor power: 1.1 kW
Voltage: 230V
discharge port: 2"
Power cable length: 8 m
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Vertical work position
material version:
Stainless steel pump housing
Cast iron impeller
Stainless steel shredding system
Pump shaft stainless steel
Maximum capacity: 300 l/min
Maximum lifting height: 10 m
Motor power: 0.75 kW
Voltage: 230V
discharge port: 2"
Power cable length: 6 m
Size of impurities max.: 25 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Insulation class B
Working position vertical
material version:
Cast iron pump housing
Cast iron impellers
Stainless steel inlet screen
Cast iron pump lid
Multistage submersible pump designed for pumping fresh, clean, cold water from vertebral wells and large-size tanks. The design of the pump allows it to be connected directly to the water system, bypassing the diaphragm tank and pressure switch, which significantly reduces installation costs. The operation of the MULTI DIVER 1200 EVO is controlled automatically by means of a built-in electronic...
Deep well pumps are designed to draw clean, cold water from drilled deep water intakes, vertebral wells and other water reservoirs. Designed for installation in wells with a minimum diameter of 110mm. The pump should not pump water with solid grinding parts, however, the design of the pumps allows for pumping water with sand content up to 5% max.
Technical data:
Maximum water temperature 35...
Maximum capacity: 260 l/min
Maximum lifting height: 10 m
Motor power: 0.55 kW
Voltage: 230V
discharge port: 2"
Power cable length: 8 m
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Vertical work position
material version:
Stainless steel pump housing
Cast iron impeller
Stainless steel shredding system
Pump shaft stainless steel
Technical data:
Size of filtered impurities > 120
Maximum working pressure 10 Bar
Connection size 1"
Maximum flow 120 l/min
Material version:
Plastic housing
Stainless steel mesh
Plastic discs
Submersible pumps are aggregates made entirely of stainless steel, installed in wells with a minimum diameter of 110mm. They are designed for pumping clean, cold water that does not contain solid grinding or long-fiber elements.
Technical data:
Maximum water temperature 35 ° C
Protection degree IP 68
Winding insulation class B
Number of starts up to [x / hour] 20
Minimum cooling flow of the...
The submersible pump with a grinder is a pump dedicated to sewage, slurry, water with the presence of organic impurities and household impurities. The pump has a grinding system that pre-cuts the pumped medium into pieces, thanks to which there is no clogging of the delivery section in the pipeline. The pump has a float control that controls switching on depending on the level of the pumped medium and protects the pump against dry running. It is equipped with overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick. It can be successfully used as a pump for emptying sewage tanks in farms and households.
