The submersible pump with a grinder is a pump dedicated to sewage, slurry, water with the presence of organic impurities and household impurities. The pump has a grinding system that pre-cuts the pumped medium into pieces, thanks to which there is no clogging of the delivery section in the pipeline. The pump has a float control that controls switching on depending on the level of the pumped medium and protects the pump against dry running. It is equipped with overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick. It can be successfully used as a pump for emptying sewage tanks in farms and households.
Maximum capacity: 660 l/min
Maximum lifting height: 54 m
Motor power: 7.5 kW
Voltage: 400V
Discharge port: 65mm
Power cable length: 9 m
Size of impurities max.: 15 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Cast iron pump housing
Cast iron impeller
Stainless steel inlet screen...

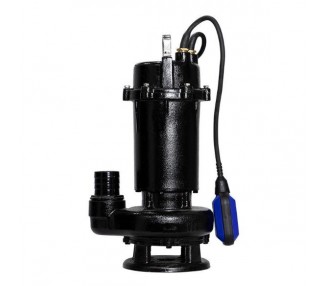

Maximum capacity: 467 l/min
Maximum lifting height: 13 m
Motor power: 0.75 kW
Voltage: 230V
discharge port: 2"
Power cable length: 8 m
Size of impurities max.: 25 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 8
Working position vertical
material version:
Cast iron pump housing
Cast iron impeller
Cast iron inlet screen
Cast iron...
Maximum capacity: 205 l/min
Maximum lifting height: 8 m
Motor power: 0.75 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 35 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Stainless steel pump housing
PPO technopolymer impeller
Stainless steel inlet screen...
The device for drying clothes is also useful in sports centers, recreational centers and resorts and ski centers. It serves as a drying agent for jerseys, sportswear and footwear, as well as body armor, thus extending their lifespan and reducing the formation of odors and bacteria.
The dryer is characterized by its versatility, high quality, innovative solution safety, adaptability,...
Maximum capacity: 92 l/min
Maximum lifting height: 30 m
Motor power: 0.8 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 30
Working position vertical
material version:
Stainless steel pump housing
Technopolymer impellers
Plastic inlet screen
Plastic pump lid
Maximum capacity: 100 l/min
Maximum lifting height: 6 m
Motor power: 0.26 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 5 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Plastic pump housing
PPO technopolymer impeller
Plastic inlet screen...
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Aluminum alloy pump housing
Cast iron impeller
Stainless steel inlet screen
Rotor chamber housing spheroidal graphite cast iron
• Working with medium under pressure
• Robust workmanship
• Resistant to abrasion and UV radiation
• Light weight
• Flat - at rest
• Large selection of sizes
Temperature of the medium 0°C ÷ 60°C
Bursting pressure 6 bar
Working pressure 4 bar
External enclosure PE
Inner casing PE
Reinforcement polyester
A discharge hose that can be rolled up significantly reduces the hydraulic performance of the...
Maximum capacity: 300 l/min
Maximum lifting height: 9 m
Motor power: 1.1 kW
Voltage: 230V
Discharge port: 2"/50mm
Power cable length: 5.5 m
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Stainless steel pump housing
Cast iron impeller
Stainless steel shredding system
Pump shaft stainless...

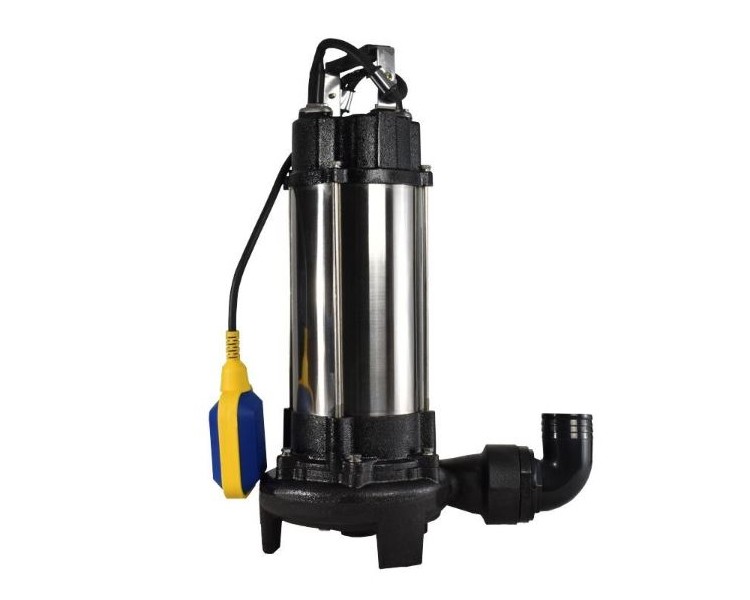

Maximum capacity: 360 l/min
Maximum lifting height: 21 m
Motor power: 1.5 kW
Voltage: 230V
discharge port: 2"
Power cable length: 8 m
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 20
Working position vertical
material version:
Stainless steel pump housing
Cast iron impeller
Stainless steel shredding system
Pump shaft stainless steel
Maximum capacity: 100 l/min
Maximum lifting height: 6.5 m
Motor power: 0.25 kW
Voltage: 230V
discharge port: 1"
Power cable length: 6 m
Size of impurities max.: 5 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Plastic pump housing
PPO technopolymer impeller
Plastic inlet screen
Plastic pump cover

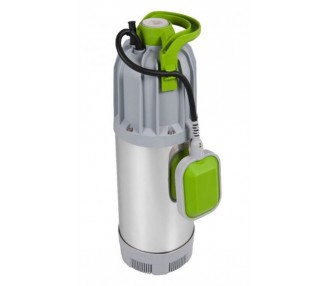

Maximum capacity: 110 l/min
Maximum lifting height: 40 m
Motor power: 1 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 1 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP X8
Maximum immersion depth [meters] 7
material version:
Stainless steel pump housing
Technopolymer impellers
Suction screen made of impact-resistant material...
The pumps are monoblock submersible pumps where the pump hydraulics are integrated directly with the motor. Depending on the hydraulic parameters, they are available as single-stage or multi-stage with peripheral rotors. Their characteristic feature is that they achieve a relatively high head (pressure). The motor's winding is cooled from the inside with ecological oil.
Technical data:...
The submersible pump with a grinder is a pump dedicated to sewage, slurry, water with the presence of organic impurities and household impurities. The pump has a grinding system that pre-cuts the pumped medium into pieces, thanks to which there is no clogging of the delivery section in the pipeline. The pump has a float control that controls switching on depending on the level of the pumped medium and protects the pump against dry running. It is equipped with overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick. It can be successfully used as a pump for emptying sewage tanks in farms and households.
