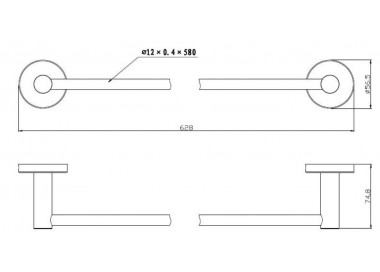

The product consists of two wall mounts, two wall plates covering the wall mounts and a towel bar. The bar is made of injected zinc with a diameter of 12 mm and a thickness of 0.4 mm and it is fixed in place to the support cylinders by its ends. The wall plates covering the wall mounts, which are fastened to the ends of the support cylinders, are made of injected zinc and have diameter of 56.5 mm and a thickness of 1.5 mm. The wall mounts, made of carbon steel, have two holes so they can be fixed to the wall by means of screws. The assembled set has a chrome finish plated with 3.5-6 μm nickel + 2-3 μm chromium that provides it an appropriate resistance against corrosion. The overall dimensions of the product are 56.5 x 628 x 74.8 mm.
COMPONENTS AND MATERIALS
- Concealed wall plate – AISI 304 stainless steel. Secured to wall with two screws.
- Main body –AISI 304 stainless steel, 2,5mm thickness. Matt black powder coat (RAL 9004), 115 µm thickness. Secured to wall plate with one Allen stainless steel screw. This piece consists of the main bar holding the paper roll and the round snap flange hiding and fixing the rear plate....
COMPONENTS AND MATERIALS
- Concealed wall plates (2 units) – AISI 304 stainless steel. Secured to wall with two screws.
- Main body –AISI 304 stainless steel, 2,5mm thickness. Matt black powder coat (RAL 9004), 115 µm thickness. Secured to wall plates with two stainless steel screws.
- Translucent round glass made of glass
- Fixings set - Two Ø 6mm wall plugs, two Ø 4mm screws and one Allen...
COMPONENTS AND MATERIALS
- Concealed wall plate – AISI 304 stainless steel. Secured to wall with two screws.
- Main body –AISI 304 stainless steel, 2,5mm thickness. Matt black powder coat (RAL 9004), 115 µm thickness. Secured to wall plate with one Allen stainless steel screw. This piece consists of the main bar holding the paper roll and the round snap flange hiding and fixing the rear plate....
Features:
1) Body, handle and covers made of brass according to UNE-EN 1982.
2) Chrome-plated according to EN 248.
3) Silent ceramic cartridge Ø35 insert.
4) Nozzle M18x1 made of brass, chrome.
5) Maximum temperature of use: 85 ° C.
6) Maximum recommended temperature: 65°C.
7) Maximum operating pressure: 10 bar.
8) Minimum operating pressure: 0.5 bar.
9) Recommended pressure: 1 - 5 bar.
COMPONENTS AND MATERIALS
- Concealed wall plate (2) – AISI 304 stainless steel. Secured to wall with two screws.
- Main body made of stainless steel AISI 304 and a protective black powder coated RALM 9004.
The main body of the towel consists of a main bar and three quidistant additional bars of smaller diameter.
- Fixings set - Four Ø 6mm wall plugs, four Ø 4mm screws and one Allen key....
The product consists of two wall mounts, two wall plates covering the wall mounts and a towel bar. The bar is made of injected zinc with a diameter of 12 mm and a thickness of 0.4 mm and it is fixed in place to the support cylinders by its ends. The wall plates covering the wall mounts, which are fastened to the ends of the support cylinders, are made of injected zinc and have diameter of 56.5 mm and a thickness of 1.5 mm. The wall mounts, made of carbon steel, have two holes so they can be fixed to the wall by means of screws. The assembled set has a chrome finish plated with 3.5-6 μm nickel + 2-3 μm chromium that provides it an appropriate resistance against corrosion. The overall dimensions of the product are 56.5 x 628 x 74.8 mm.
