Parameters
Maximum capacity: 133 l / min
Maximum lifting height: 7 m
Engine power: 0.18 kW
Voltage: 230V
Discharge port: 1½ "
Power cable length: 5 m
Max size of impurities: 20 mm
Trusted client
Trusted delivery

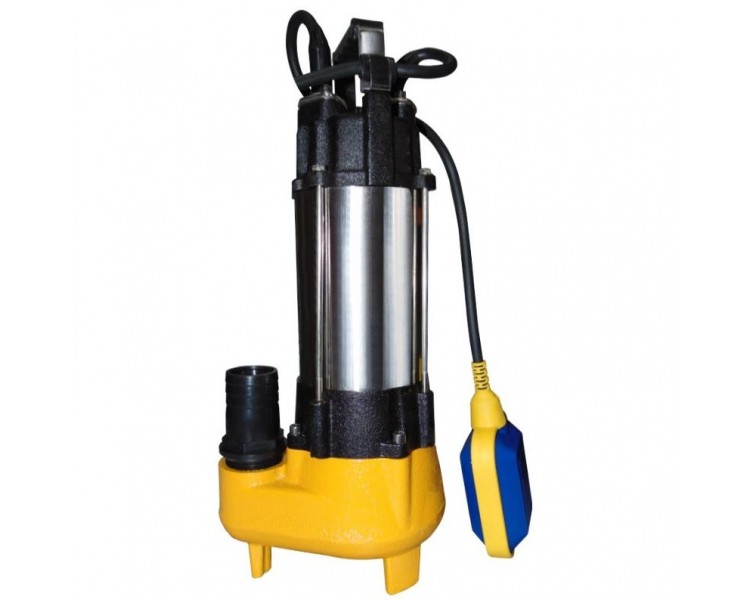

The WQ 180F pump is a compact submersible pump designed for pumping dirty water, as well as rainwater and gray water containing organic pollutants with a maximum diameter not exceeding 18mm. WQ 180F has a float control that controls its activation depending on the level of the pumped medium and protects the pump against dry running. The WQ 180F submersible pumps are used for pumping out treated sewage from the second chamber of septic tanks, water from flooded rooms, irrigation or pumping water from reservoirs or ponds. Application area: households, agritourism, agriculture. This model is often used by producers of home sewage treatment plants, thus confirming the quality and durability of our products
Technical data:
Maximum water temperature 35 ° C
Protection degree IP 68
Maximum immersion depth [meters] 10 m
Working position Vertical
Material execution:
Stainless steel motor housing
Cast iron impeller
Cast iron pump cover
Data sheet
