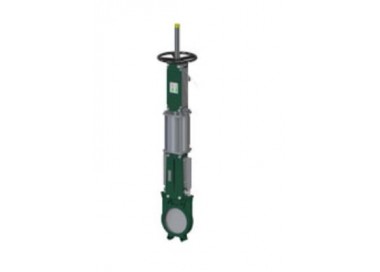

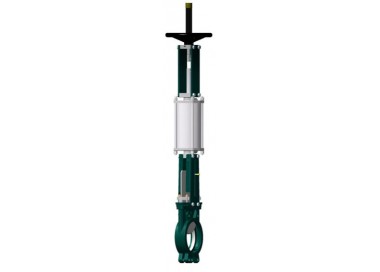

The knife gate valve is particularly suitable for the most difficult applications. Area of use: water treatment networks, pulp and paper industry, chemical plants, winemaking, cement works, pneumatic transport, storage.
Fluids: water, sewage, pulp, pasty products, powdery, granular, fibrous, abrasive and crystallizing
Trusted client
Trusted delivery

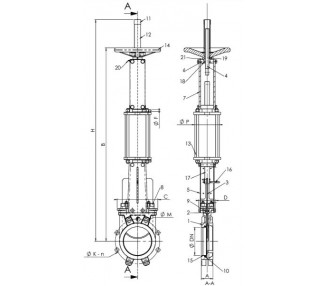

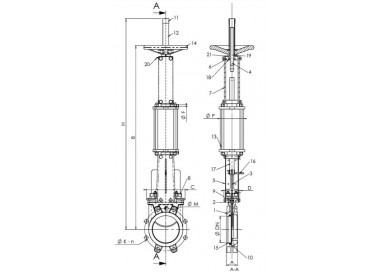

Function ON/OFF or regulation. Wafer threaded mounting ISO PN10. Unidirectional tightness, direction indication thanks to the arrow on the body. Small retention zone: the gate is guided in the body and has little clearance. Gland assembly: packing and O-ring (same material as seat joint) to assure the elasticity and decrease the operating force. Small head loss. Possibility to regulate thick fluids the adaptation of a diaphragm ring.
