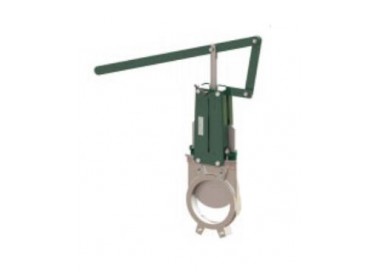

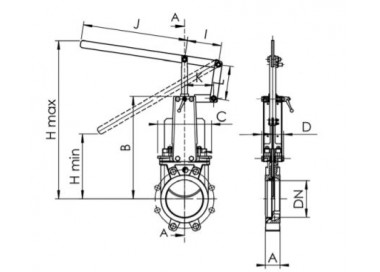

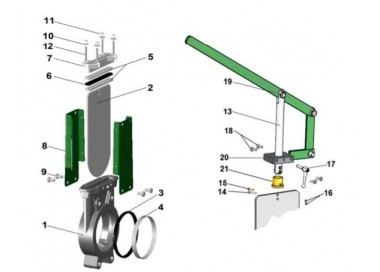

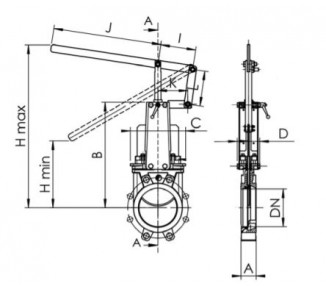

Knife gate valve with lever stainless steel body - between flanges PN10
The knife gate valve is particularly suitable for the most difficult applications. Area of use: water treatment networks, pulp and paper industry, chemical plants, winemaking, cement works, pneumatic transport, storage.
Trusted client
Trusted delivery
Range: from DN50 to DN300.
- Knife Gate Valve on/off or regulation with rising stem.
- Molded monobloc body
- Unidirectional water tightness: Flow direction indicated on the body with an arrow.

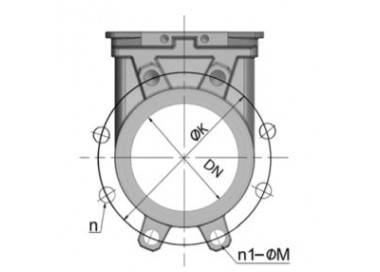

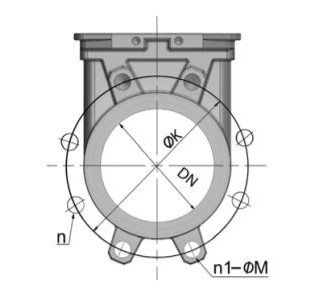

- Installation between flanges ISO PN10.
- Small retention zone.
- Gate with a beveled cutting edge guided in the body with little backlash.
- Guaranteed closure, without risk of blockage.
- Standard polished gate, soft contact with the gaskets.
- Very resistant ductile iron packing flange avoids risks of breaks.
- Operating force reduced thanks to the elasticity of the gaskets.
- Pre-formed profiled sheet metal support plates from DN50 to DN300 for accessory or kit mounting.
- Full flow when fully opened, ensuring a high flow rate with low head loss.
- Flow regulation possible for pasty or abrasive fluids with installation of a deflector
PLVG6400-002EP
No customer reviews for the moment.
16 other products in the same category:
Knife gate valve with lever ductile iron body -...
Range: from DN50 to DN300. - Knife Gate Valve on/off or regulation with rising stem. - Molded monobloc body - Unidirectional water tightness: Flow direction indicated on the body with an arrow. - Installation between flanges ISO PN10. - Small retention zone. - Gate with a beveled cutting edge guided in the body with little backlash. - Guaranteed closure, without risk of blockage. - Standard...
Flat HydroFlap Non-Return Flaps, Inox
MATERIALS: Body, flap and hinge: Stainless steel AISI 304/304L - 1.4301/1.4307 or acid-resistant AISI 316/316L - 1.4401/1.4404 or any other depending on customer requirements. Gaskets: EPDM (or other material depending on working conditions, e.g. NBR, VITON or silicone). MOUNTING: Flap valves are mounted on a flat wall using anchors. It is recommended to use adhesive anchors. Sealing to the...
Hand penstocks, HDPE
MATERIALS: Frame, handle: Stainless steel AISI 304/304L - 1.4301/1.4307 or acid-resistant AISI 316/316L - 1.4401/1.4404 or any other depending on customer requirements Shut-off plate: PEHD (High Density Polyethylene). Gaskets: EPDM (or other material depending on working conditions, e.g. NBR, VITON or silicone). TIGHTNESS: The penstock is tight up to its height It is possible to make penstocks...

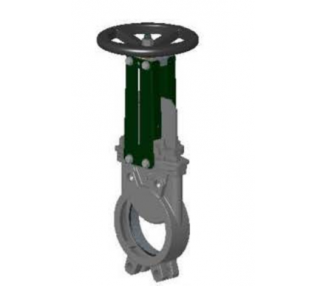

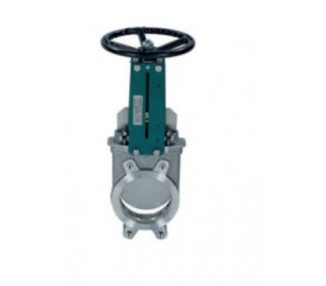

Knife gate valve with handwheel stainless steel body...
