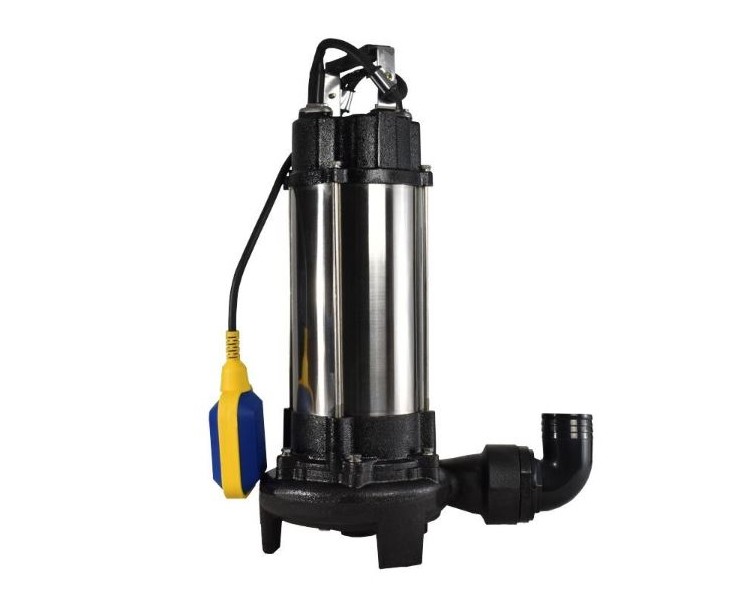

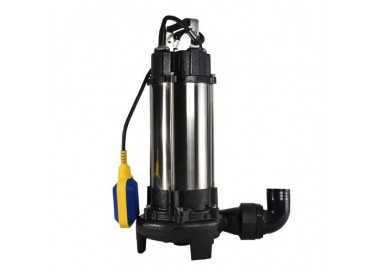

The submersible pump with a grinder is a pump dedicated to sewage, slurry, water with the presence of organic impurities and household impurities. The pump has a grinding system that pre-cuts the pumped medium into pieces, thanks to which there is no clogging of the delivery section in the pipeline. The pump has a float control that controls switching on depending on the level of the pumped medium and protects the pump against dry running. It is equipped with overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick. It can be successfully used as a pump for emptying sewage tanks in farms and households.
Maximum capacity: 230 l/min
Maximum lifting height: 8 m
Motor power: 0.75 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Size of impurities max.: 25 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Technopolymer pump housing
PPO technopolymer impeller
Plastic inlet screen
Plastic pump cover

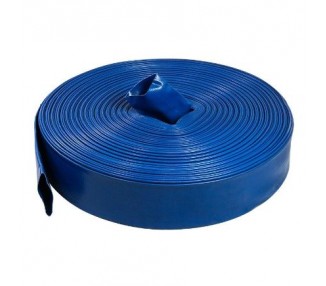

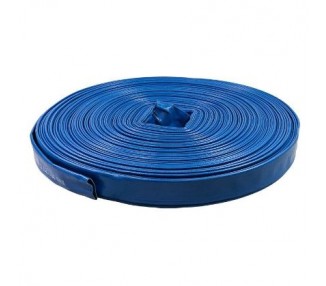

• Working with medium under pressure
• Robust workmanship
• Resistant to abrasion and UV radiation
• Light weight
• Flat - at rest
• Large selection of sizes
Temperature of the medium 0°C ÷ 60°C
Bursting pressure 6 bar
Working pressure 4 bar
External enclosure PE
Inner casing PE
Reinforcement polyester
A discharge hose that can be rolled up significantly reduces the hydraulic performance of the...
APPLICATIONS
A. Uniformed services: fire, police, army
B. Industry and service sectors
C. Outdoor recreational facilities and winter sports resorts
A modern device designed specifically for the outlined function, incorporating a zinc-coated steel structure, electrostatically
painted – color RAL 7035, structure. Leveling feet, retractable power cord, L = 2.3 m long. Patent lock. The cabinet has...
Deep well pumps are designed to draw clean, cold water from drilled deep water intakes, vertebral wells and other water reservoirs. Designed for installation in wells with a minimum diameter of 110mm. The pump should not pump water with solid grinding parts, however, the design of the pumps allows for pumping water with sand content up to 5% max.
Technical data:
Maximum water temperature 35 °...
Maximum capacity: 160 l/min
Maximum lifting height: 6 m
Motor power: 0.55 kW
Voltage: 230V
discharge port: 1"
Power cable length: 6 m
Size of impurities max.: 35 mm
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Plastic pump housing
PPO technopolymer impeller
Plastic inlet screen
Plastic pump cover
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Working position vertical
material version:
Aluminum pump housing
PPO technopolymer impeller
Stainless steel inlet screen
Rotor housing spheroidal graphite cast iron
The WQ 7-12-1.1 submersible pump with a grinder is dedicated to pumping sewage, slurry and dirty water with the presence of organic and household pollutants. The pump has an efficient grinding system which initially cuts the pumped medium into pieces, thanks to which there is no clogging of the discharge section in the pipeline. The pump has a float control which controls switching on depending...
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 10
Vertical work position
material version:
Aluminum housing
Technopolymer impeller
Stainless steel inlet screen
Stainless steel pump cover
The WQ 180F pump is a compact submersible pump designed for pumping dirty water, as well as rainwater and gray water containing organic pollutants with a maximum diameter not exceeding 18mm. WQ 180F has a float control that controls its activation depending on the level of the pumped medium and protects the pump against dry running. The WQ 180F submersible pumps are used for pumping out treated...
Use:
Submersible pump WQ 10-10-0.75 with crusher is a pump designed for sewage, slurry, water with the presence of organic pollutants and gray water pollutants in the household. The pump has an efficient grinding system that cuts the pumped medium into small pieces, which does not clog the discharge part. The pump has a float control, which controls the start of the engine according to the...
Maximum capacity: 830 l/min
Maximum lifting height: 21 m
Motor power: 2.2 kW
Voltage: 400V
Discharge port: 3"/75mm
Power cable length: 8 m
Size of impurities max.: 8.5 mm
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 25
Working position vertical
material version:
Stainless steel pump housing
Chrome cast steel impeller
Stainless...
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Winding insulation class B
Number of starts maximum [x/hour] 20
Minimum motor cooling flow [m/s] 0.08
Maximum immersion depth [meters] 50
Working position vertical
Built-in engine starting method
capacitor
material version:
Stainless steel pump housing
Cable sheath stainless steel
Pump shaft stainless steel
Noryl...
Technical data:
Size of filtered impurities > 120
Maximum working pressure 10 Bar
Connection size 1"
Maximum flow 120 l/min
Material version:
Plastic housing
Stainless steel mesh
Plastic discs
Maximum capacity: 92 l/min
Maximum lifting height: 30 m
Motor power: 0.8 kW
Voltage: 230V
discharge port: 1"
Power cable length: 10 m
Technical data:
Maximum water temperature 35°C
Degree of protection IP 68
Maximum immersion depth [meters] 30
Working position vertical
material version:
Stainless steel pump housing
Technopolymer impellers
Plastic inlet screen
Plastic pump lid
The submersible pump with a grinder is a pump dedicated to sewage, slurry, water with the presence of organic impurities and household impurities. The pump has a grinding system that pre-cuts the pumped medium into pieces, thanks to which there is no clogging of the delivery section in the pipeline. The pump has a float control that controls switching on depending on the level of the pumped medium and protects the pump against dry running. It is equipped with overcurrent protection on the power cable, protecting the motor of the device against overload in the event of blocking the rotor, e.g. with a stick. It can be successfully used as a pump for emptying sewage tanks in farms and households.
